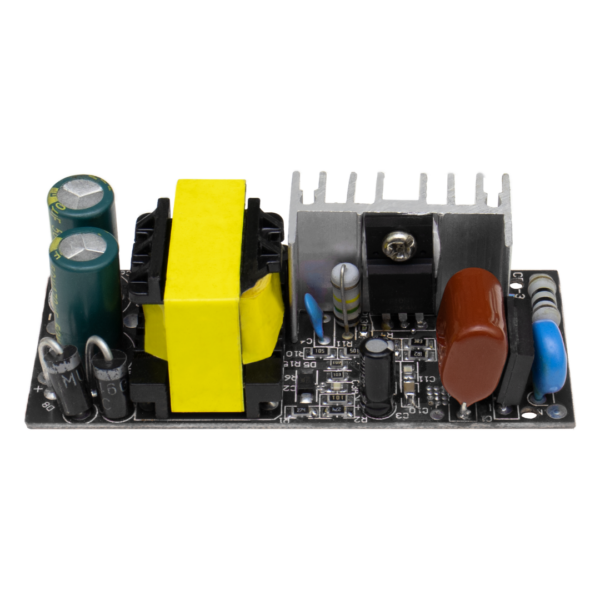

Outdoor Driver

Features - Under voltage protection - 415VAC protection - Suitable for dry, damp and wet locations - Output overload protections - Output short circuit protections - Output open circuit protections - Power factor ≥ 0.95 - THD less than 15% - IP67

Model	Wattage	Output Voltage (V)	Output Current (I)	Surge	PCB Dim. (L×W×H) (mm)	Driver Box Dim. (L×W×H) (mm)	Potted Body Dim. (L×W×H) (mm)
BDRV0430C	18W	30-40V	450mA	3KV	65×27×17	72×33×22	92×30×22
BDRV0440C	24W	30-40V	600mA	4KV	73×30×18	83×42×25	106×36×24
BDRV0450C	30W	30-40V	700mA	4.5KV	73×30×18	83×42×25	106×36×24
BDRV0460C	36W	30-40V	900mA	4.5KV	81×35×25	127×48×31	111×36×29
BDRV0470C	40W	30-40V	1000mA	6KV	81×35×25	127×48×31	111×36×29
BDRV0480C	40W	45-60V	700mA	6KV	90×31×23	127×48×31	111×36×29
BDRV0490C	45W	30-40V	1200mA	6KV	90×31×23	127×48×31	111×36×29
BDRV0500C	45W	45-60V	750mA	6KV	90×31×23	127×48×31	111×36×29
BDRV0510C	50W	30-40V	1400mA	6KV	90×31×23	127×48×31	111×36×29
BDRV0520C	50W	45-60V	850mA	6KV	90×31×23	127×48×31	111×36×29
BDRV0530C	50W	50-72V	700mA	6KV	90×31×23	127×48×31	111×36×29
BDRV0540C	60W	30-40V	1500mA	6KV	90×31×23	127×48×31	111×36×29
BDRV0550C	60W	45-60V	1050mA	6KV	90×31×23	127×48×31	116×40×32
BDRV0580C	72W	45-60V	1200mA	6KV	90×31×23	127×48×32	116×40×32
BDRV0581C	75W	30-45V	1400mA	6KV	90×31×24	127×48×33	116×40×32
BDRV0582C	75W	80-100V	700mA	6KV	90×31×23	127×48×31	116×40×32
